Key Takeaways
► Optical devices rely on precise alignment so light, lenses, and sensors work together without distortion.► Even micron-level misalignment can reduce image quality, shift the field of view, or affect system reliability.
► Active alignment improves accuracy by adjusting components in real time while measuring image performance.
► A controlled assembly process with clean surfaces, precise motion systems, and thorough validation ensures repeatable results.
► High-tech markets from automotive safety to medical imaging depend on perfectly aligned optics for clear, consistent, and safe operation.
Optical devices control everything from autonomous vehicle cameras to the sensors guiding surgical robots. Yet the science behind optical alignment can feel complex. Optical alignment must deliver precise positioning and assembly, followed by full validation to improve resolution, field consistency, and long-term system stability. Additionally, precision in optical assembly is essential for maintaining dependable input in AI-driven systems.
Why Optics Power the Technologies we Rely on Today
Optics help devices interpret the world with clarity and predictability. Even small alignment errors can cause systems to misread distances, misidentify objects, or lose calibration over time. Light carries large amounts of information and lenses shape that light so sensors can read it accurately. When optical elements are aligned correctly, systems can detect their surroundings with confidence.
A comparison to human vision helps illustrate the concept. The curved lens of the eye focuses light onto the retina, and even minor deviations cause blur. Optical systems behave in the same way. A small shift in lens position or curvature moves the focal plane and reduces image sharpness and measurement accuracy.
This is why active alignment processes are essential. Active alignment adjusts optical components while monitoring the actual image. Camera alignment is a practical example of active alignment and represents one of the most demanding forms of precision alignment in optical manufacturing. This approach ensures that each component is placed for optimal performance rather than relying solely on mechanical placement. Technologies in automotive safety, medical imaging, industrial automation, and consumer electronics depend on precise optical behavior to operate consistently and safely.
In short, optics give modern technologies the ability to see accurately. The active alignment process ensures every optical component operates at peak precision.
The Basics: How Light, Lenses and Sensors Work Together
Every optical device depends on three core elements that must work together with exact precision: light, lenses, and sensors. Light provides the information, the lens shapes that information, and the sensor captures it. When these align properly, the system sees clearly and produces sharp and stable images.
Light travels in waves and a curved lens bends these waves toward a focal point. If a lens is misplaced even slightly, the focal point shifts and the resulting image becomes soft or distorted. Because small alignment errors can quickly expand into major quality issues, optical systems rely on careful measurement solutions that assess lens quality, focus accuracy, and early signs of misalignment.
What Happens Inside a Lens?
How curvature shapes and redirects light
Lens curvature determines how strongly it bends incoming light. A steeper curvature produces a stronger optical effect. Optical engineers combine specific curvatures to reduce aberrations and create sharp and accurate images. This process involves fine tuning multiple optical parameters to reach the correct focal condition.
How the lens guides light toward the imaging sensor during alignment
A lens also must guide light to the correct location on the imaging sensor. Even a few microns of misalignment shift the field of view or reduce resolution. For this reason, alignment includes repeated checks to ensure light reaches the intended point on the sensor.
The Optical Path in a Device
In real systems, optical elements do not function independently. They work as part of a unified optical path that includes lenses, filters, apertures, structural elements, and the sensor. Any offset along this path produces tilt, decentering, or vignetting that affects the final image.
One important concept is boresight alignment. Boresight ensures that the optical axis matches the intended viewing direction. In automotive perception systems, even a small boresight error can shift the perceived environment and lead to inaccurate interpretation.
What Makes an Optical Device Reliable
Reliability is achieved when an optical device delivers the same performance across varying temperatures, vibrations, and environmental changes. This level of stability depends on:
- Consistent component quality
- Controlled assembly conditions
- Precise alignment processes
- Proper preparation, gluing and cleaning
- Thorough testing and validation
Because optical systems are frequently used in safety critical applications, reliability is not optional. It is built into every stage of assembly and validation.

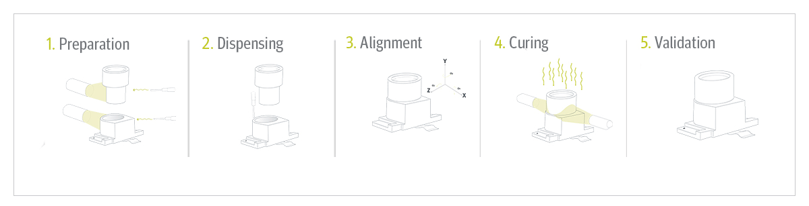

The Optical Module Assembly Process
Below is an overview of the complete optical module assembly process, including purpose, required tasks, and expected outcomes.
| Purpose | Necessary Tasks | Result |
Step 1: Preparation |
||
| Ensure all components meet optical quality standards |
|
Only verified and qualified components enter the assembly process. |
Step 2: Glue Dispensation |
||
| Determine the proper adhesive and apply it precisely and consistently |
|
Adhesive is applied accurately without misalignment. |
Step 3: Alignment |
||
| Position components with micron precision |
|
Optical alignment meets micron accuracy and preserves the intended viewing direction. |
Step 4: Curing |
||
| Stabilize adhesives and components for long-term reliable use |
|
Assemblies remain stable and resistant long-term drift. |
Step 5: Validation |
||
| Confirm complete optical performance |
|
Optical alignment meets micrometer accuracy and preserves the intended viewing direction. |
Where Precision Optical Assembly Matters the Most
Optical devices play a critical role in many high-tech markets:
- Autonomous vehicles and ADAS where perception accuracy is vital.
- Medical imaging, endoscopy, and surgical robotics where alignment affects safety.
- Industrial vision and smart manufacturing where inspection quality ensures product integrity.
- Consumer devices such as smartphones, wearables, and VR or AR systems where integrated optics shape the user experience.
Building Optical Devices for an AI-Driven Future
AI relies on dependable visual input. Optical devices act as the eyes of intelligent systems. Because AI models interpret what the optics see, even slight alignment errors can distort input and reduce decision reliability.
Active alignment optimizes optical components while the device is powered and imaging, delivering improved field of view consistency, boresight accuracy, and overall image performance.
As autonomy expands across vehicles, robotics, and connected environments, precise optical alignment ensures systems see clearly and act safely.
Ready to Improve Your Optical Device Assembly?
Organizations seeking to advance their optical manufacturing can benefit from platforms designed for active alignment, optical testing, and full performance validation.
For deeper insights into active alignment platforms and optical test solutions, visit the Averna resource center or consult with our consult with our experienced optical engineers for guidance.
